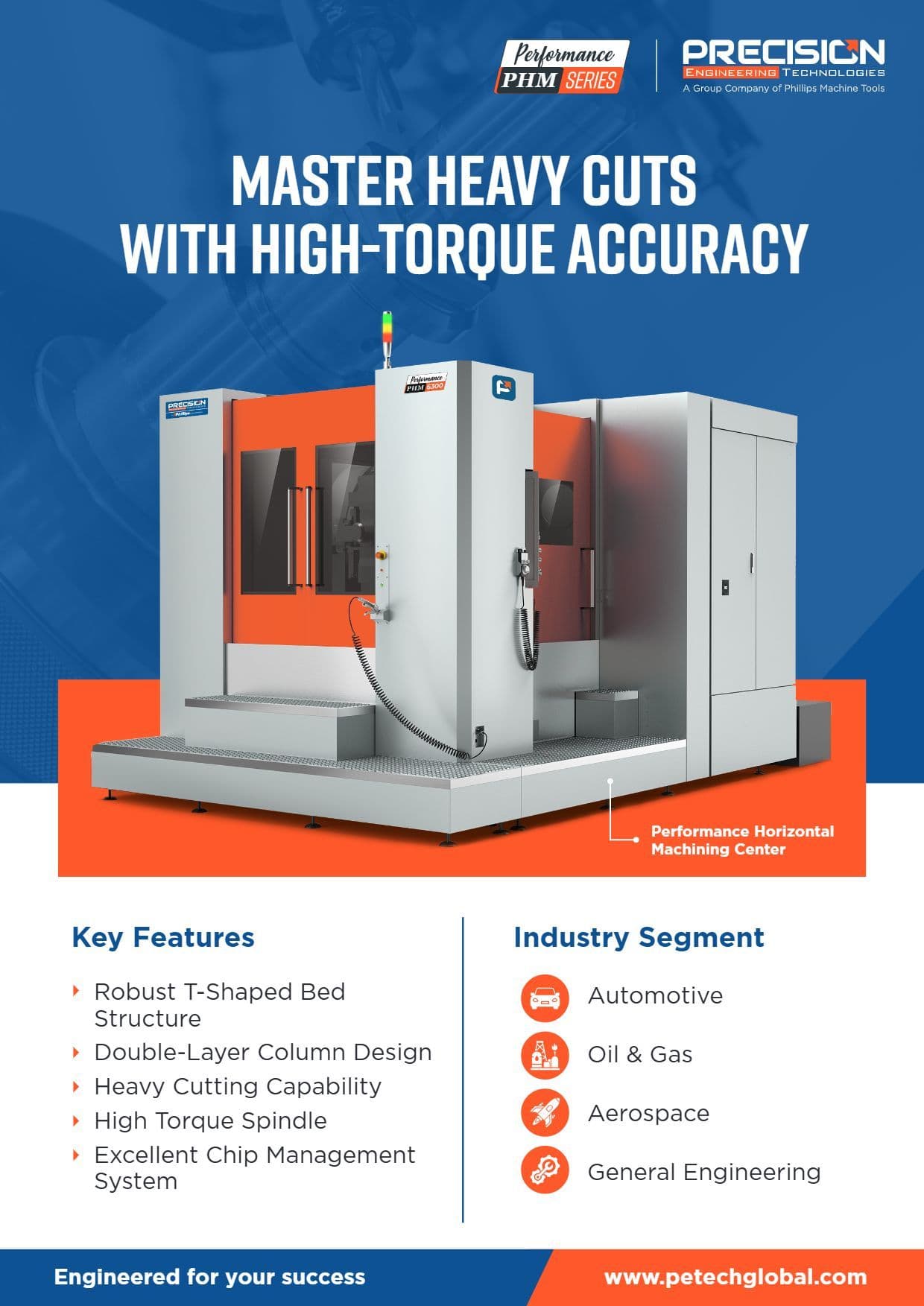

Experience Precision and Power with the PHM+ Performance Horizontal Machining Center
The PHM+ Performance Horizontal Machining Center is engineered to deliver unparalleled precision and speed for machining complex, high-tolerance parts. Combining cutting-edge technology with a robust and durable design, the PHM+ provides superior performance that meets the demands of modern manufacturing environments.
Whether you operate in aerospace, automotive, oil & gas, or general engineering sectors, the PHM+ offers versatile capabilities and operational efficiency to ensure your production runs smoothly and accurately every time.
Why Choose the Performance Horizontal Machining Center?
- Robust T-Shaped Bed Structure: Designed for exceptional rigidity and stability during the most demanding heavy cutting operations.
- Double-Layer Column Design: Enhances vibration damping and structural strength, resulting in superior machining precision.
- Heavy Cutting Capability: Optimized to handle tough materials and complex machining with ease and accuracy.
- High Torque Spindle: Delivers powerful torque for aggressive cutting, enabling high productivity without sacrificing quality.
- Excellent Chip Management System: Efficient chip removal keeps the workspace clean, minimizing downtime and improving overall efficiency.
- Reliable After-Sales Support: Backed by PETECH’s nationwide service network and comprehensive warranty, ensuring minimal downtime and peace of mind.
Key Features of the PHM+ Horizontal Machining Center
- Advanced CNC Control: Intuitive control system that ensures smooth, accurate machining with a user-friendly interface.
- High Rigidity Construction: T-shaped bed and double-layer column provide maximum stability and vibration control during operations.
- Powerful High Torque Spindle: Capable of heavy-duty cutting tasks with precision, suitable for a wide range of materials.
- Efficient Chip Management: Optimized system for quick chip evacuation and a cleaner work environment, enhancing machine uptime.
- Versatile Machining: Supports multi-axis and complex part machining across diverse material types and sizes.
- Easy Maintenance: Designed for quick and easy access, reducing downtime and maximizing uptime.
Industry Applications & Benefits: The PHM Performance HMC Machine excels across multiple sectors:
- Automotive: Achieve consistent, high-volume production of precision shafts, bushings, and other components.
- Aerospace: Machine critical parts requiring tight tolerances and superior surface finishes, such as turbine shafts and landing gear components.
- Heavy Engineering: Handle large, complex, and heavy workpieces efficiently thanks to a robust design and powerful spindle options.
- General Manufacturing: Adaptable to a variety of materials including steel, aluminum, and high-strength alloys, making it perfect for diverse machining needs.
Advantages of the PHM Horizontal Milling Machines
- Exceptional Accuracy and Repeatability: Maintains tight tolerances and consistent quality, even in the most challenging machining conditions.
- Productivity: Accelerates production cycles through optimized tooling configurations and powerful, high-torque spindle speeds.
- Cost-Efficient Operation: Reduces overall operational expenses with an energy-efficient, durable design built for long-term performance.
- Operator-Friendly Design: Simplified controls and ergonomic layout enable quick training, smooth operation, and seamless workflow integration.
Get the Best Horizontal Machining Center Price in India
If you’re looking for a horizontal milling machine, 5 axis milling machine, or horizontal machining center, the PHM+ Performance Series from PETECH is your proven choice. Designed for precision, speed, and heavy-duty performance, it delivers exceptional results in every machining cycle.
PETECH offers competitive HMC machine prices and horizontal milling machine prices without compromising on quality or accuracy. Whether your requirement is for a horizontal milling center or high-performance CNC milling machines, the PHM+ is engineered to meet your toughest production challenges with reliability and efficiency.
PHM – Technical Specification
SECTION | DESCRIPTION | UNIT | PHM5000 | PHM6300 | PHM8000 |
---|---|---|---|---|---|
Pallet | Pallet Size | mm | 500 x 500 | 630 x 630 | 800 x 800 |
Max. Load Capacity | kg | 900 | 1200 | 2000 | |
Max. Workpiece Swing | mm | 720 | 950 | 1200 | |
T-Slots | mm | 5-14″100 | 5-18″125 | 5-22″160 | |
Pallet Change Time | sec | 16 | 16 | 16 | |
Min. Indexing Angle | deg | 1º | 1º | 1º | |
Distance from Spindle Nose to Pallet Centre | mm | 100 – 850 | 130 – 1030 | 200 – 1200 | |
Distance from Spindle Centre to Pallet | mm | 130 – 1030 | 50 – 800 | 130 – 1130 | |
Spindle | Spindle Paper | type | BBT50 | BBT50 | BBT50 |
Spindle Speed | rpm | 6000 | 6000 | 6000 | |
Spindle Driving Method | type | Gear Box | Gear Box | Gear Box | |
Main Spindle Power Output | kw | 22 / 26 | 22 / 26 (30 / 37) | 22 / 26 (30 / 37) | |
Max. Spindle Torque | nm | 1070 | 1070 | 1070 | |
Feed | Travel (X/Y/Z) | mm | 750 / 750 / 750 | 1050 / 750 / 900 | 1300 / 1000 / 1000 |
Rapid Rate (X/Y/Z) | m/min | 48/48/48 | 48/48/48 | 48/48/48 | |
Feed Rate (X/Y/Z) | m/min | 10 | 10 | 10 | |
Guideways | type | Roller | Roller | Roller | |
ATC | Number of Tools | nos. | 40 | 40 (60) | 40 (60) |
Tool Selection | type | Random | Random | Random | |
Max. Tool Dia. (W.T / W.O) | mm | 125 / 250 | 125 / 250 | 125 / 250 | |
Max. Tool Length | mm | 500 | 500 | 500 | |
Max. Tool Weight | kg | 18 | 18 (25) | 18 (25) | |
Tool Change Time | sec | 3.5 | 3.5 | 3.5 | |
Accuracy | X/Y/Z Positioning Accuracy | mm | 0.01 | 0.01 | 0.01 |
X/Y/Z Repeatability | mm | 0.006 | 0.006 | 0.006 | |
B-Axis Positioning Accuracy | arc sec | 10” | 10” | 10” | |
B-Axis Repeatability | arc sec | 2” | 2” | 2” | |
Power Supply | Air Consumption | bar | 45875 | 45875 | 45875 |
Electric Power Supply | kva | 40 | 40 | 40 | |
Machine | Machine Dimensions | mm | 5650 x 3760 x 3100 | 5850 x 3760 x 3100 | 8200 x 4750 x 3600 |
Machine Weight | kg | 14000 | 16000 | 19500 | |
Controller | Controller | type | Fanuc OiMF Plus | Fanuc OiMF Plus | Fanuc OiMF Plus |
