Performance Intuitive Probing Systems
Get in touch
Precision Series probing systems provide probing and tool measurement solutions for CNC machines, enhancing accuracy and efficiency. Our automated systems save costs and improve quality by reducing scrap rates, eliminating downtime, and improving component quality. These systems support automated setup, in-cycle gauging, tool setting, and broken tool detection, reducing setup times and enhancing process control.
Specifications

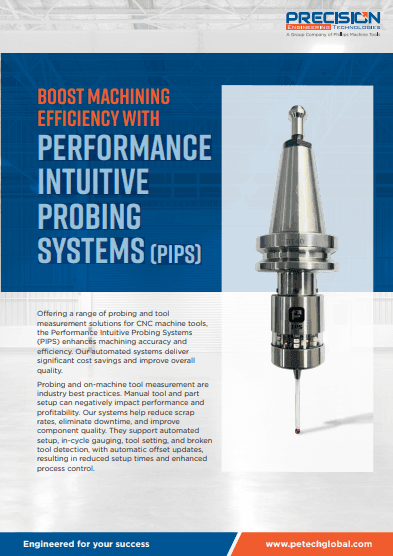

Brochure
Specifications
POSP40
MODEL | POSP40 |
---|---|
output | No(Normally open) |
Sense directions | ±X,±Y,+Z |
Pretravel | 0 |
Travel | XY +/-12.5° ,Z -6.35mm |
Repeatability | <1um |
Trigger life | >10 Million |
Protect structure | IP68 |
Contact force | XY 0.4~0.8N, Z-4.0N |
Signal transmission | Infrared |
Contact material | Tungsten carbide |
Surface finishing | Grinding 4s |
Rated voltage and current | DC24V 20mA |
Cable | Oil resistant, standard3m (length can be customized), Minimum radius R7 |
LED lamp | Default: LED OFF/ Operating:LED ON |
Brochure
