PDC 1426
Get in touch

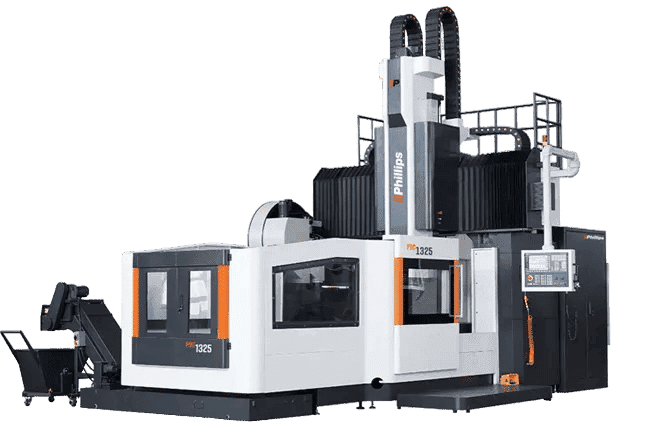

For machining larger parts, achieving robust capacity and enhanced rigidity is essential to support heavier table loads effectively. Phillips’ Double Column Machining Centers are engineered for precision machining, offering a range of advanced features tailored to industrial needs. These include solid box way construction for durability, high-speed and high-torque spindle options for versatile operations, and spacious work envelopes to accommodate larger components. The patented double-column bridge design ensures superior stability, even under demanding conditions. With standard roller linear slideways and #40 and #50 taper spindle configurations, these machines are perfectly suited for the mold industry, where accuracy is paramount. Whether it’s roughing or finishing large cavities and cores, Phillips’ machining centers deliver unmatched precision, reliability, and efficiency, meeting the complex demands of modern manufacturing industries.
PDC 1426
SPECIFICATION DETAIL | UNIT | PDC 1426 | |
---|---|---|---|
Worktable | Worktable size (WxL) | mm | 2500 × 1300 |
T slots (NxWxD) | mm | 7-22 × 160 | |
Max. weight carrying capacity | T | 4 | |
Capacity | X axis travel | mm | 2600 |
Y axis travel | mm | 1400 + 160 | |
Z axis travel | mm | 800 | |
Distance between two columns | mm | 1400 | |
Distance from spindle nose to worktable surface | mm | 160 – 960 | |
Spindle | Spindle taper | BTS50 | |
Spindle driving type | Belt | ||
Spindle motor power | kW | 15 / 18.5 | |
Max. output torque | Nm | 143 | |
Max. spindle speed | rpm | 6000 | |
Spindle clamping power | kgf | 1800 ± 10% | |
Spindle bearing spec. | mm | 7018 |
